Compact 905nm Laser Rangefinder Modules



Small and powerful

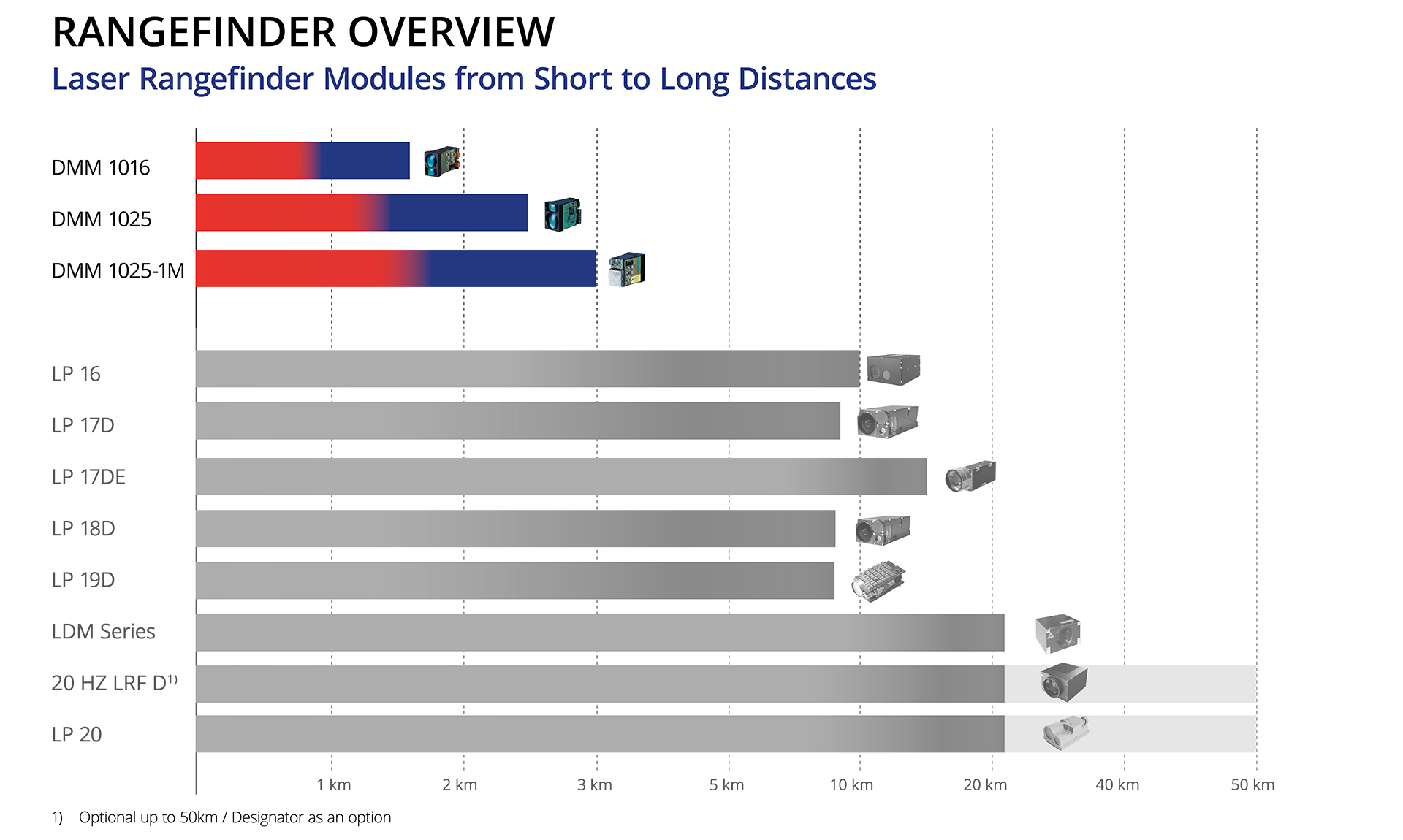

With typical ranges between 20 and 3,000 meters, a net weight between 40 and 50 grams only, and shock tested, the eye-safe DMM diode laser rangefinders range among the most robust, lightweight and compact devices in their class.



The DMM rangefinders provide a measuring accuracy of +/- 0.5 m for a wide temperature range and also under low visibility conditions. The compact design is ideally suited for integrating the DMM diode laser rangefinder into mobile or stationary optronic measuring systems for industrial applications, sports and hunting devices, drone applications, as well as reconnaissance or fire control systems in the military and security industries.

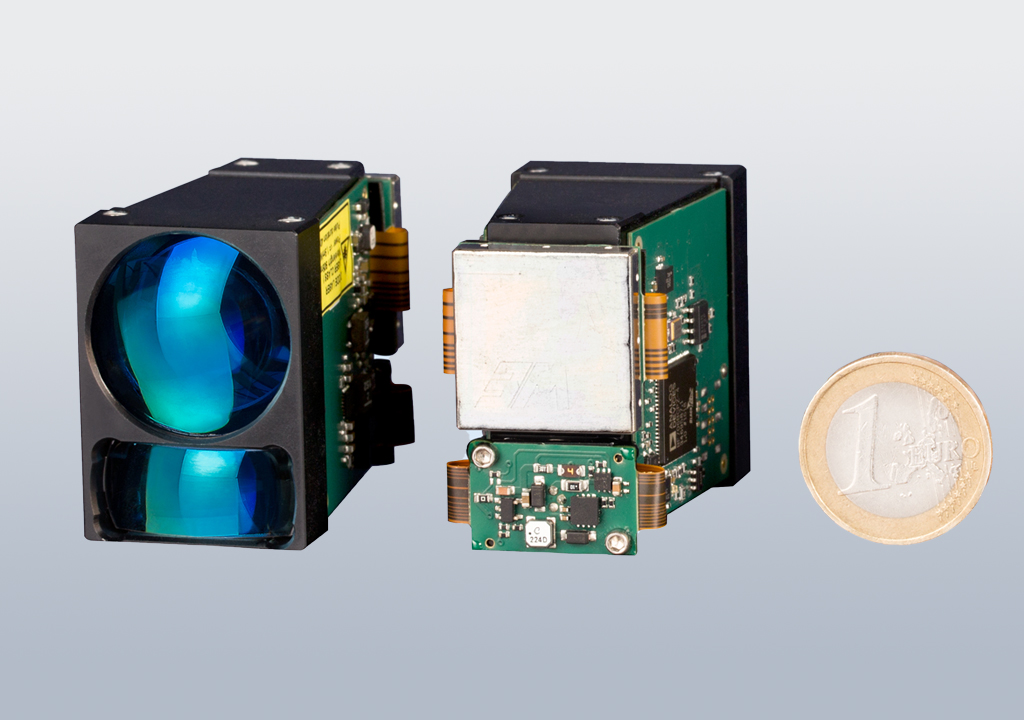

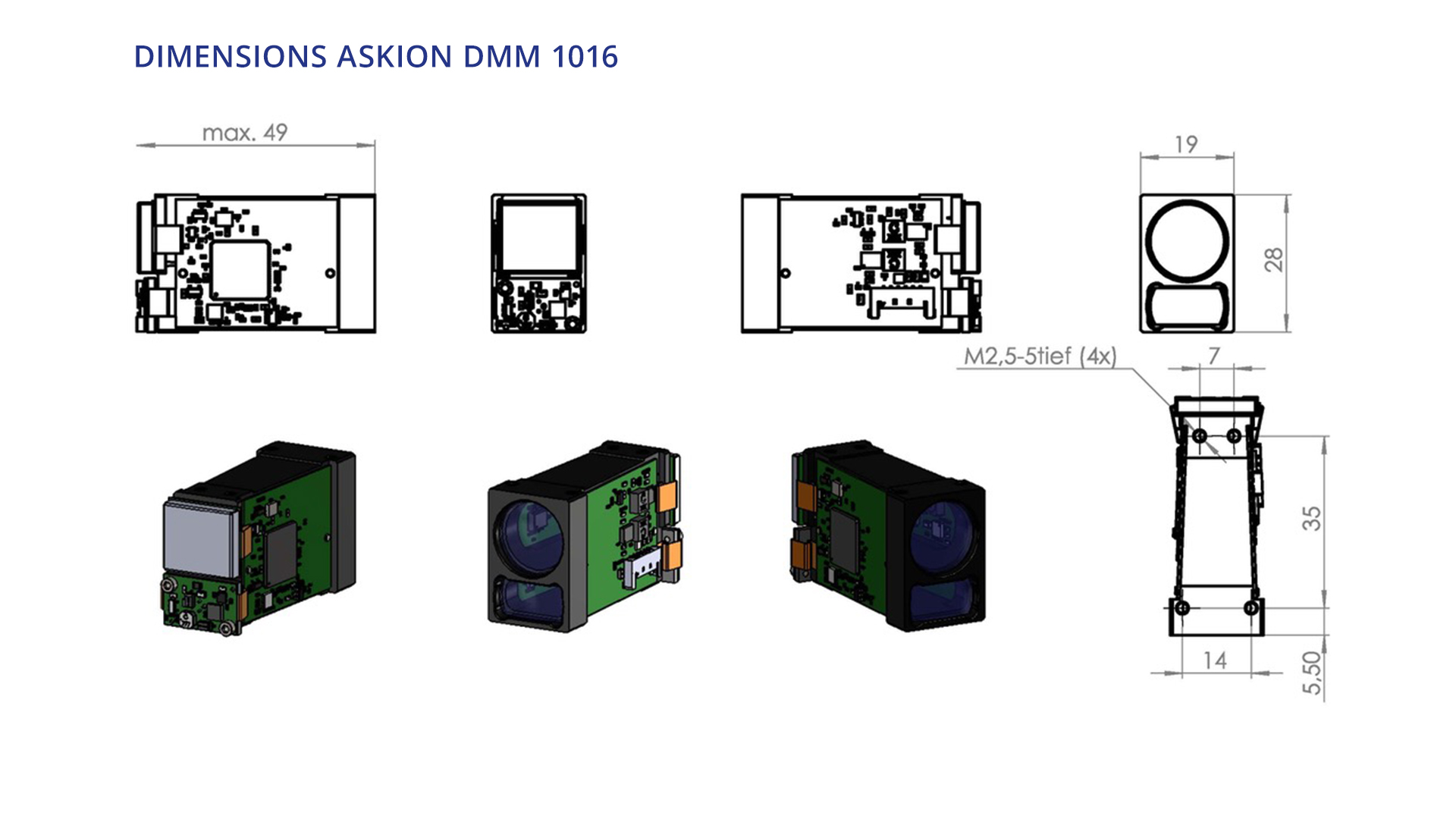

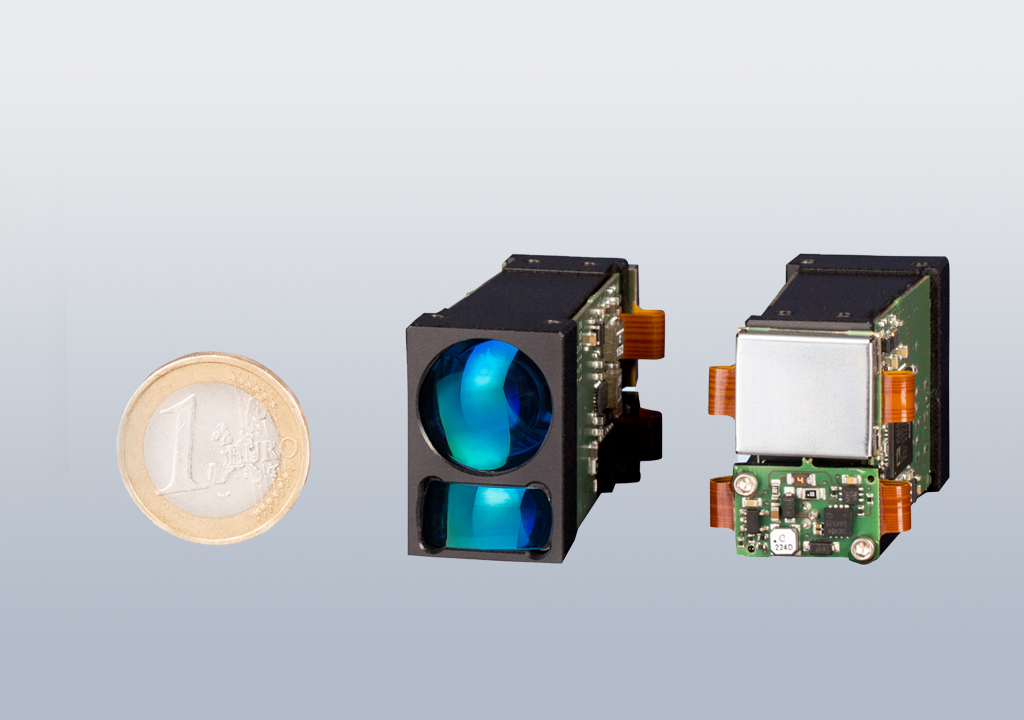

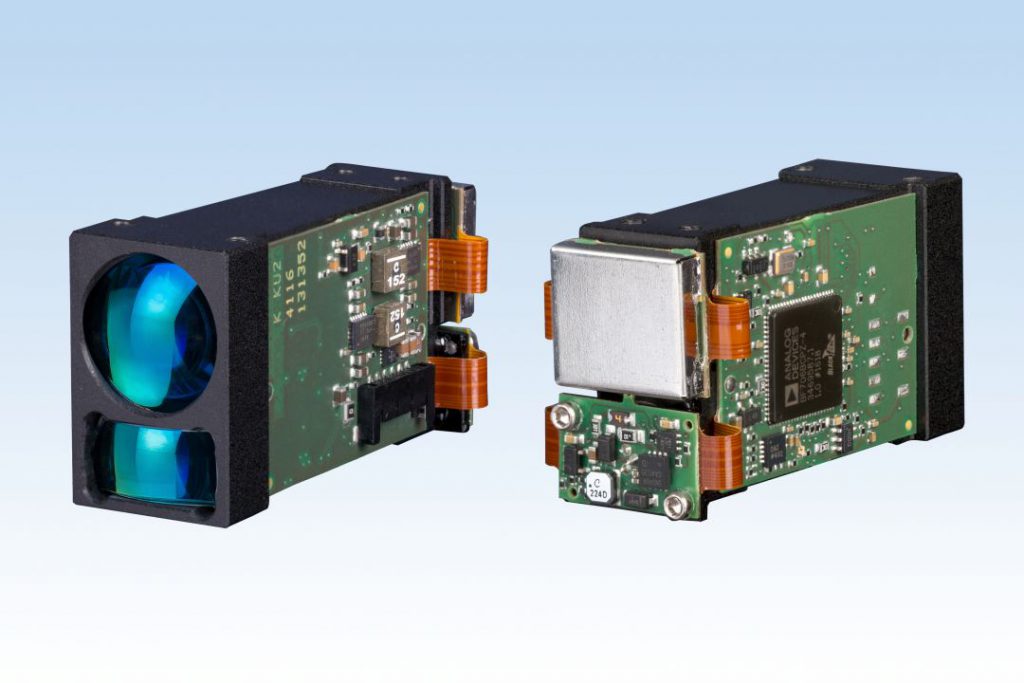

Laser Rangefinder DMM-1016

Suitable for length and position measurement, typically for the measuring range from 20 to 1,500 m

The measuring module DMM-1016 is used for determining distances to objects on the basis of time of flight measurement of laser pulses.

More

It is qualified to be integrated into sensor systems for applications in the industrial environment, e. g. for position determination as well as distance and speed measurement.

Features

Different specifications according to customer requirements can be realized.

  • wavelength
  • sizes depending on measuring range
  • measuring frequency
  • data interface (e. g. SPI, I2C, RS485)

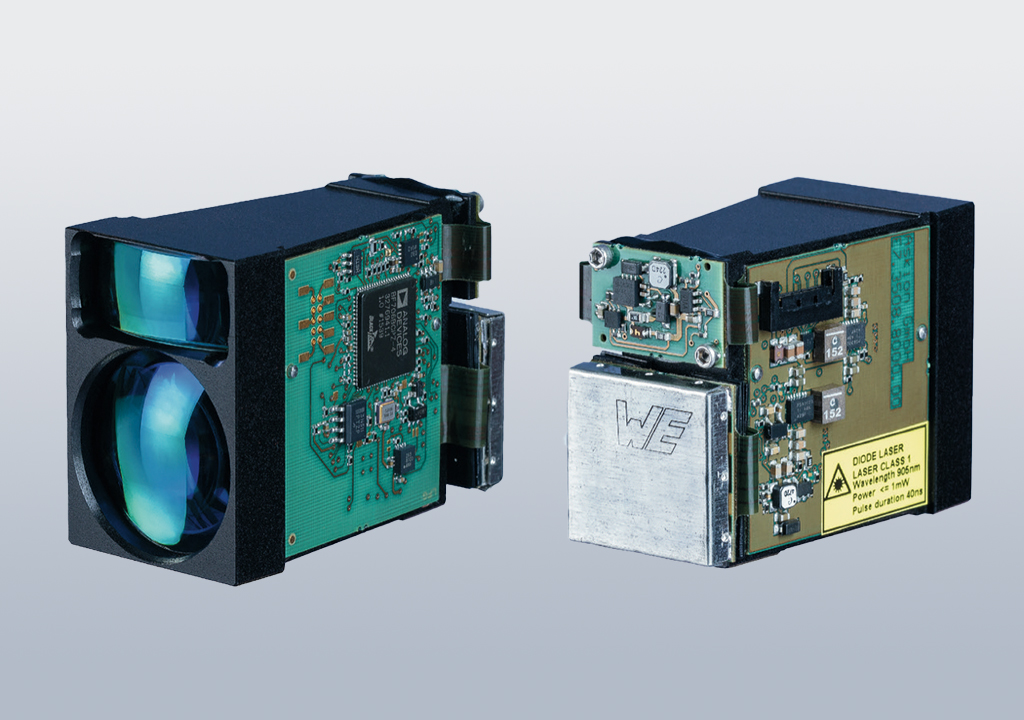

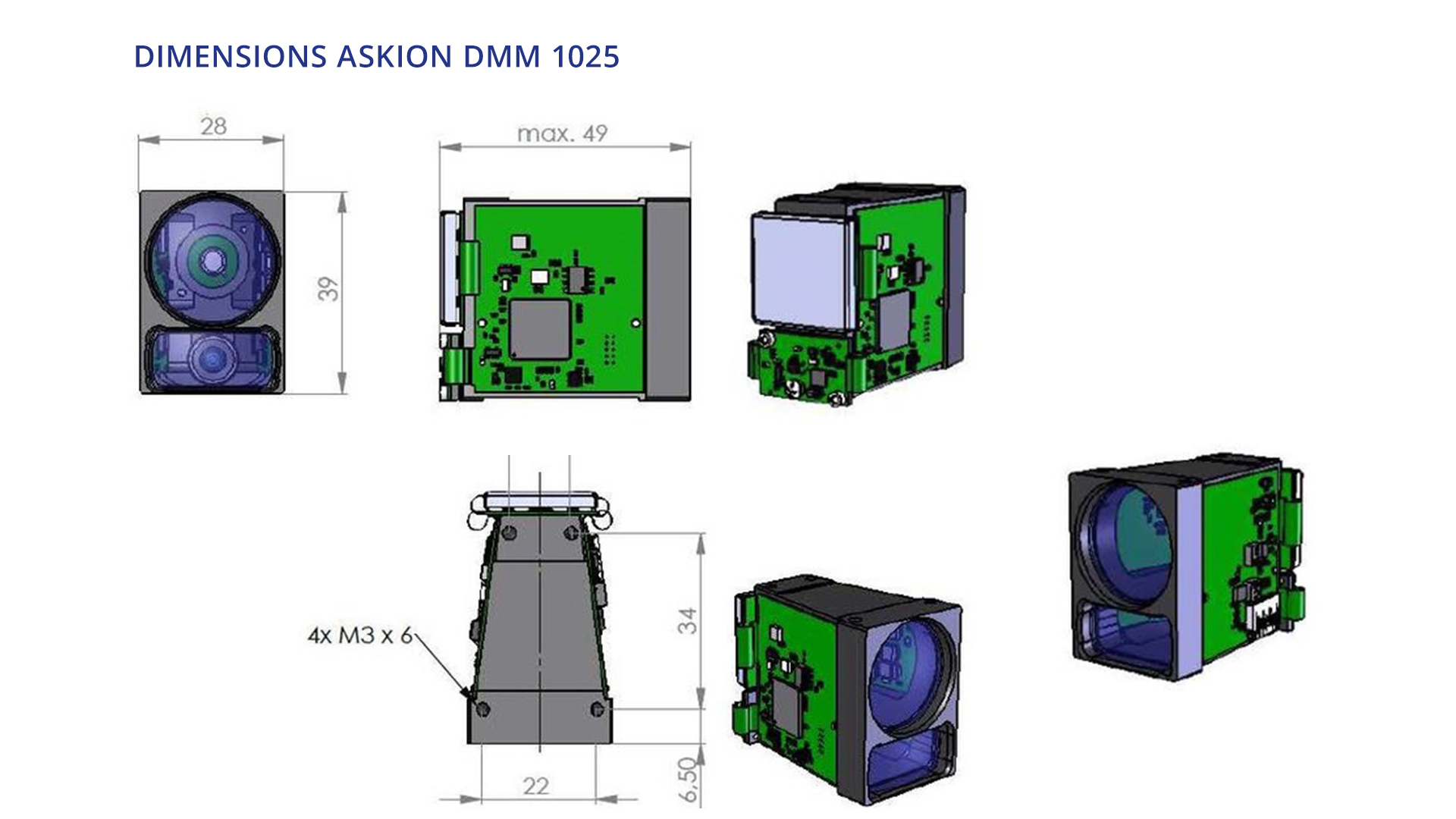

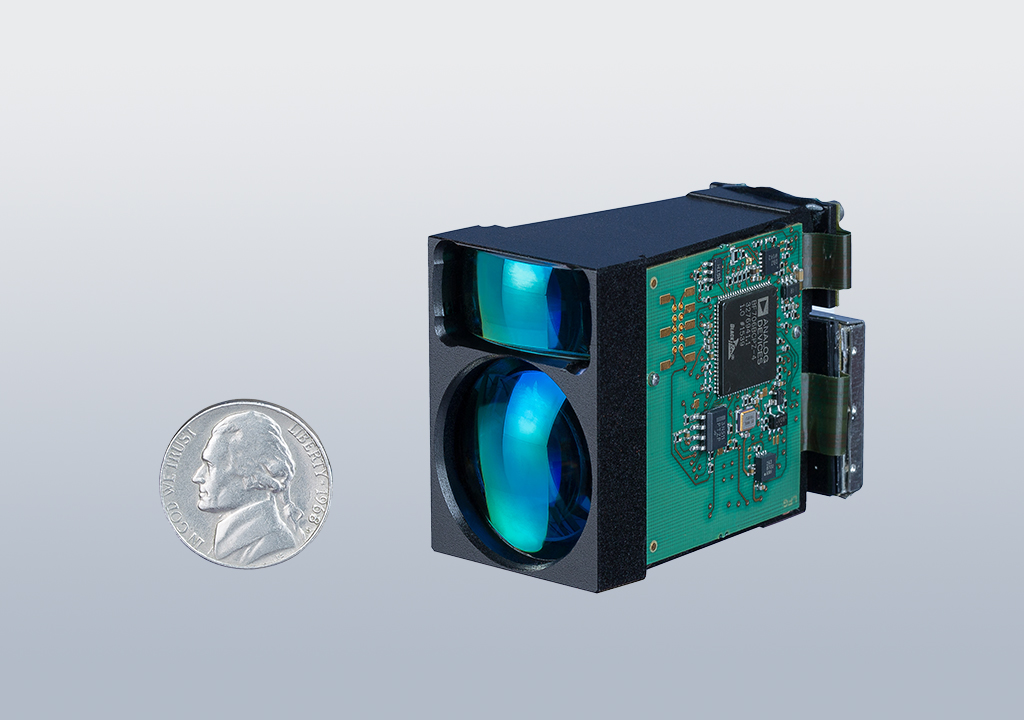

Laser Rangefinder DMM-1025

Suitable for length and position measurement, typically for the measuring range from 20 to 3,000 m.

The measuring module DMM-1025 is used for determining distances to objects on the basis of time of flight measurement of laser pulses.

More

It is qualified to be integrated into sensor systems for applications in the industrial environment, e. g. for position determination as well as distance and speed measurement.

Features

Different specifications according to customer requirements can be realized.

  • wavelength
  • sizes depending on measuring range
  • measuring frequency
  • data interface (e. g. SPI, I2C, RS485)
More

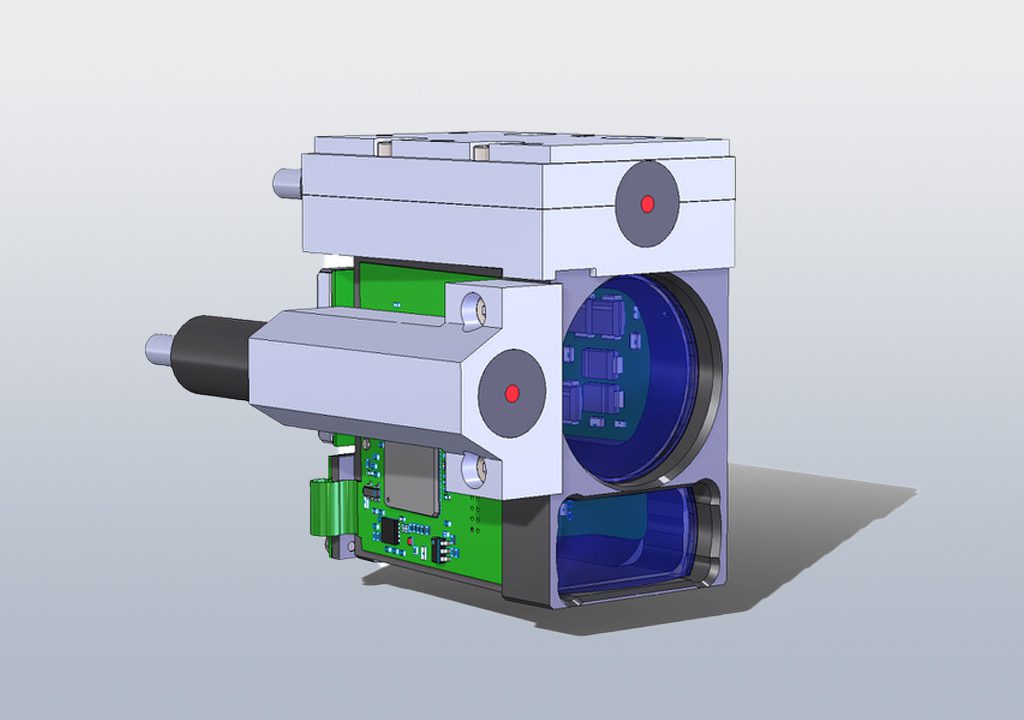

Pilot-lasermodule 670/850 nm
PLM670 / PLM850
