Medium Duty

Lightweight, Stable and Rugged 50kg Payload Capability Tripods for General Purpose Support Applications



The Medium Duty tripod provides a robust stable platform on which payloads with compatible tripod interfaces can be quickly and easily mounted.
Independently adjustable leg angle and telescopic leg sections enable deployment over a wide operating  height range on uneven surfaces while minimising stowed length.
Different foot types which may be fitted without the use of tools are available as accessories. Feet are  available to suit a wide range of deployment terrain from soft sand and snow through to hard surfaces found in urban environments.

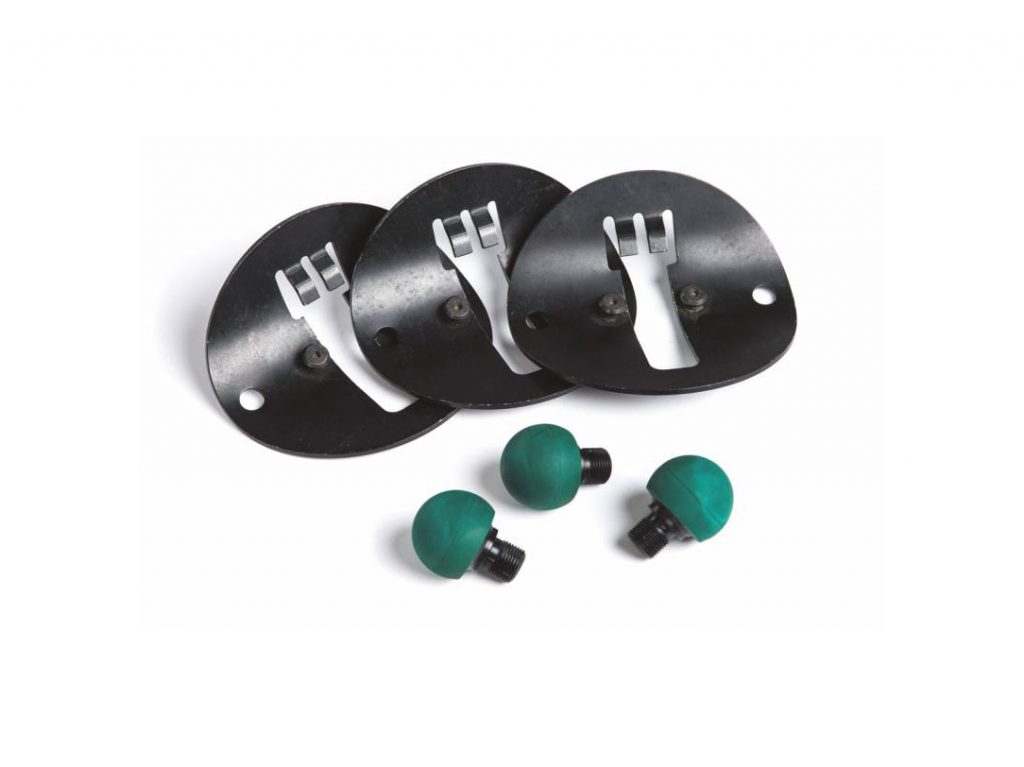

Other accessories such as footplate and pin sets and tie down kits ensure maximum stability and security.

Main Advantages & Features



  • Lightweight, Stable and Rugged 50kg Payload Capability Tripods for General Purpose Support Applications
  • Lightweight – man portable
  • Wide working height range
  • 50kg nominal payload
  • Rugged durable and easy to use. Designed for ease and speed of deployment
  • Independently adjustable leg angle and telescopic leg length
  • 5/8” 11 UNC drawbolt thread
  • Interchangeable feet, general purpose claw foot supplied as standard
  • Other foot types available to suit differing terrain, sand, snow, urban
  • DMC compatible construction
  •  Ground anchor point and ground pinning capability

Outline Specification



Construction Aluminium  construction
with a tough black  anodised finish
Temperature range
-Operational -33°C to 71°C
-Storage -46°C to 71°C
Weight 2.72kg (6lbs)
Min working height 210mm (8.3″)
Max working height 1500mm (59.1″)
Stowed dimensions Ø130mm (5.1″) x 700mm (27.6″)
Nominal payload 50kg (110lbs)

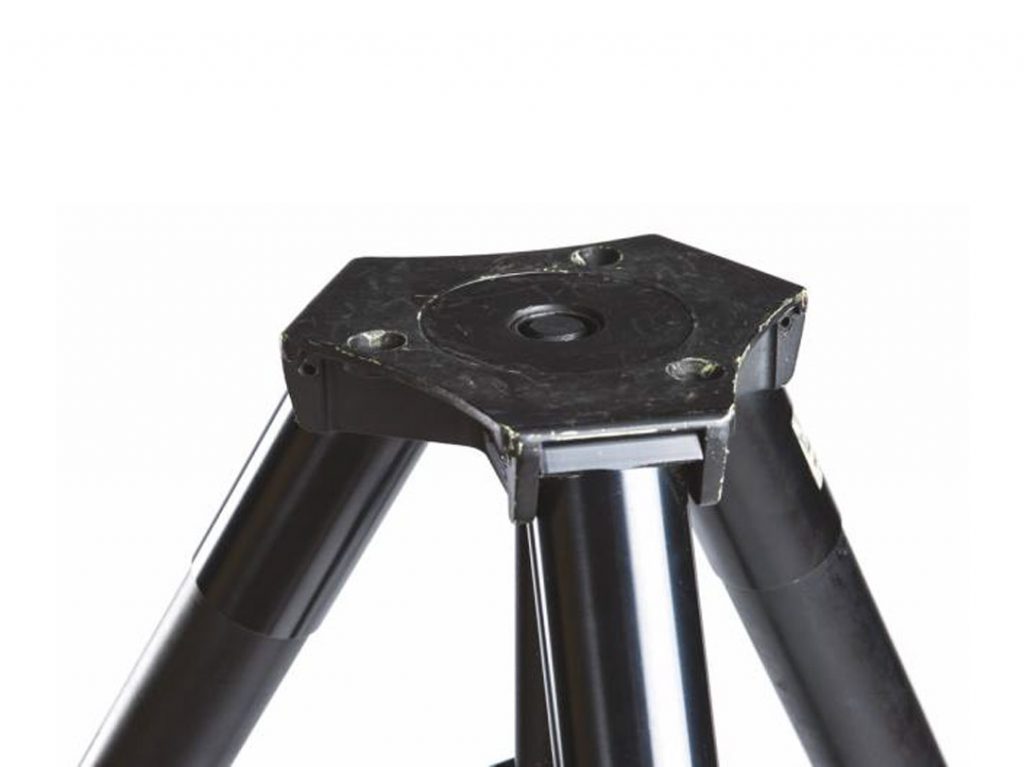

Mechanical interface 3 stud (87.2 PCD) interface
in conjunction with a 5/8″
11 UNC threaded drawbolt
Ground pinning Yes via accessory
Ground anchor Yes via accessory
Available foot types Ski, Large spike, Small spike,
Pivot and Rubber ball
