Groundmaster

Highly Stable and Torsionally Stiff Heavy Duty Tripods for High Accuracy and Rotating Payload Applications

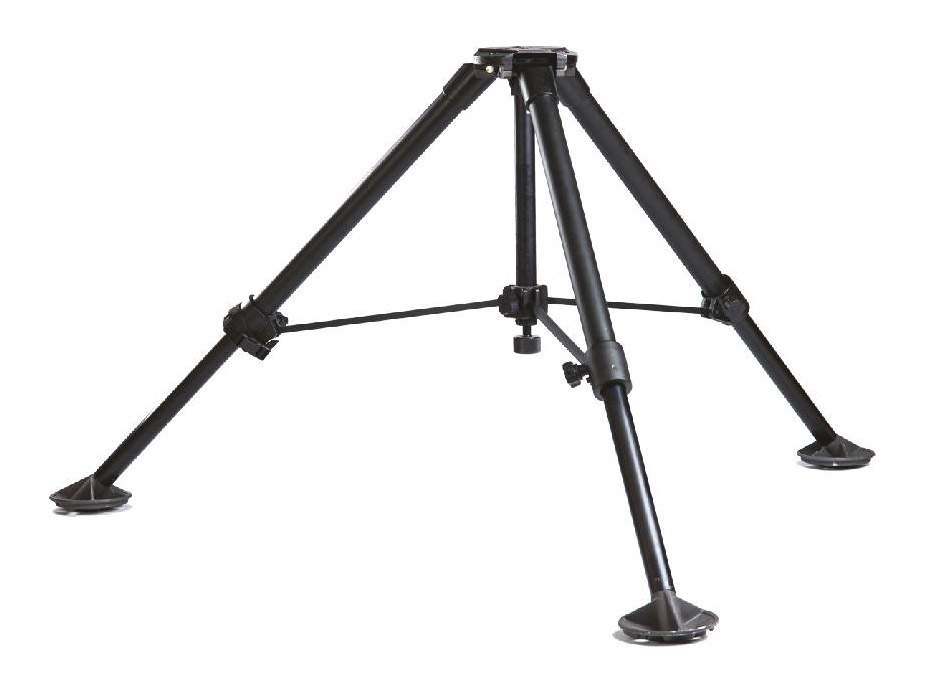

The Groundmaster tripod has been designed for heavy duty applications where stability and torsional  stiffness of payloads up to 250kg is of primary importance.

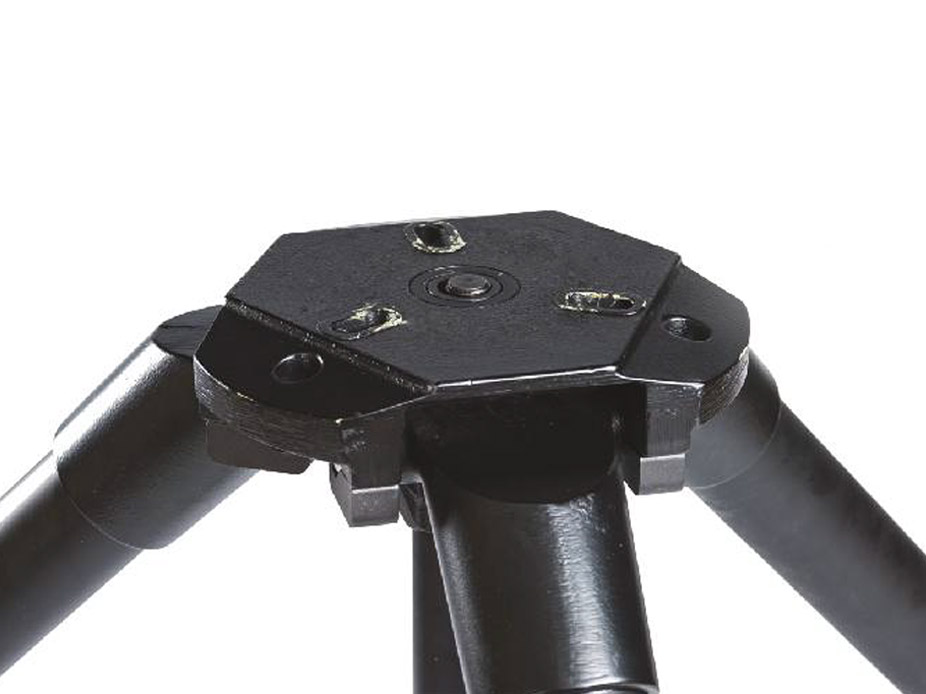

In addition to retention by the tripod’s draw bolt, payloads can be installed semipermanently using three fixing holes in the tripod head. Three radial location slots in the tripod head provide additional security for rotating payloads.

The Groundmaster tripod is of high strength aluminium and corrosion resistant steel construction featuring both ground anchor attachment points and a heavy duty cast foot design suitable for pinned and bolt down installations.

Independently adjustable leg length provides a wide operational height range whilst minimising stowed length.

Main Advantages & Features



  • Wide working height range
  • Rugged durable and easy to use
  • Designed for ease and speed of deployment
  • Torsionally stiff, ideal for rotating payloads
  • Independently adjustable telescopic leg length
  • 5/8” 11 UNC drawbolt thread
  • Payload mounting holes
  • Ground anchor capability (via optional accessory)
  • Ground pinning capability (via optional accessory)

Outline Specification



Construction Heavy duty aluminium
construction with a tough
black anodised and paint
finish
Temperature range
-Operational -33°C to 71°C
-Storage -46°C to 71°C
Weight 15kg (33lbs)
Min working height 610mm (24″)
Max working height 900mm (35.4″)
Stowed dimensions Ø200mm (7.9″) x 900mm
(35.4″)
Nominal payload 250kg (550lbs)
Mechanical interface 3 stud (87.2) PCD
interface in conjunction
with a 5/8″ 11 UNC
threaded drawbolt plus
three additional mounting
holes
Ground pinning Yes via accessory
Ground anchor Yes via accessory
