Bull Dog

Highly Stable and Torsionally Stiff Tripods for High Accuracy and
Rotating Payload Applications

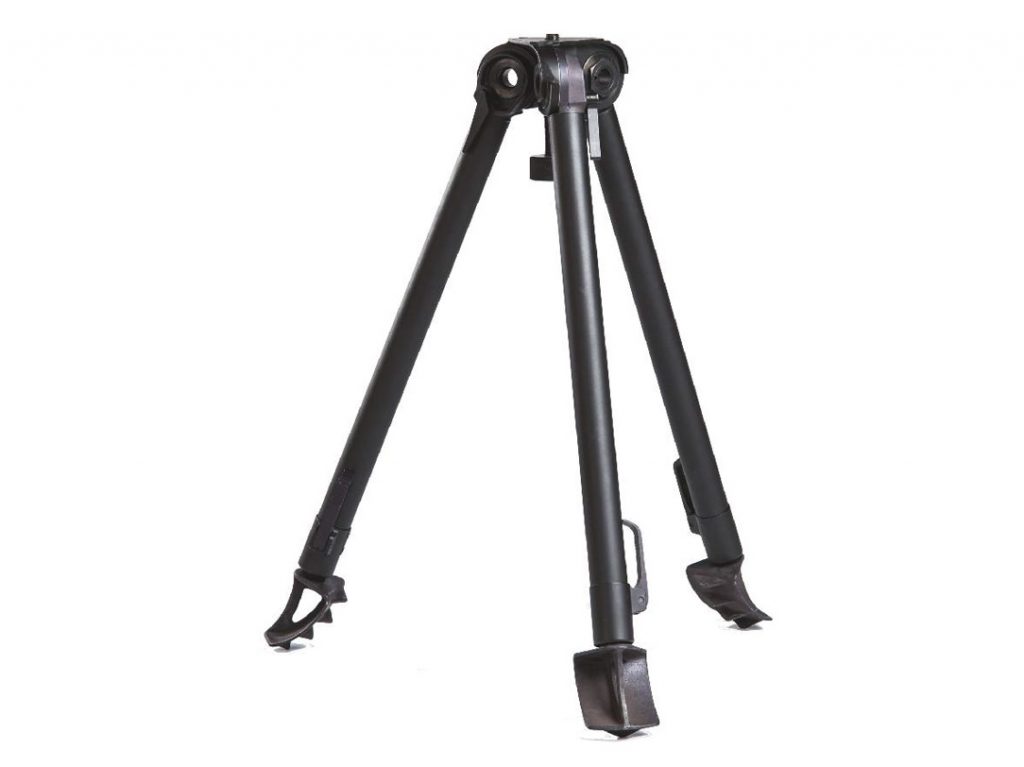

The Bulldog tripod has been designed to satisfy applications where portability and torsional stiffness is of primary importance.

The Bulldog tripod provides a torsionally stiff, robust and stable platform on which payloads with  compatible interfaces can be quickly and easily mounted.

The Bulldog tripod is of high strength aluminium and corrosion resistant steel construction and features heavy duty cast feet plus independently adjustable leg angle and length providing a wide operational height range whilst minimising stowed length.

The Bulldog tripod has a ground anchor point and ground pinning capability via optional accessories to ensure maximum stability and security.

Main Advantages & Features



  • Man portable
  • Wide working height range
  • 40kg nominal payload
  • Rugged durable and easy to use.
  • Designed for ease and speed of deployment
  • Torsionally stiff, ideal for rotating payloads
  • Independently adjustable leg angle and telescopic leg length
  • 5/8” 11 UNC drawbolt thread
  • Ground anchor capability (via optional accessory)
  • Ground pinning capability (via optional accessory)

Outline Specification



Construction Heavy duty aluminium
construction with a tough
black anodised and paint
finish
Temperature range
-Operational -33°C to 71°C
-Storage -46°C to 71°C
Weight 4kg (8.8lbs)
Min working height 160mm (6.3″)
Max working height 1080mm (42,5″)
Stowed dimensions Ø180mm (7.1″) x 730mm (28.7″)
Nominal payload 40kg (110lbs)
-Max at 170mm 25kg (55lbs)
-Max at 60° inc leg angle 50kg (110lbs)

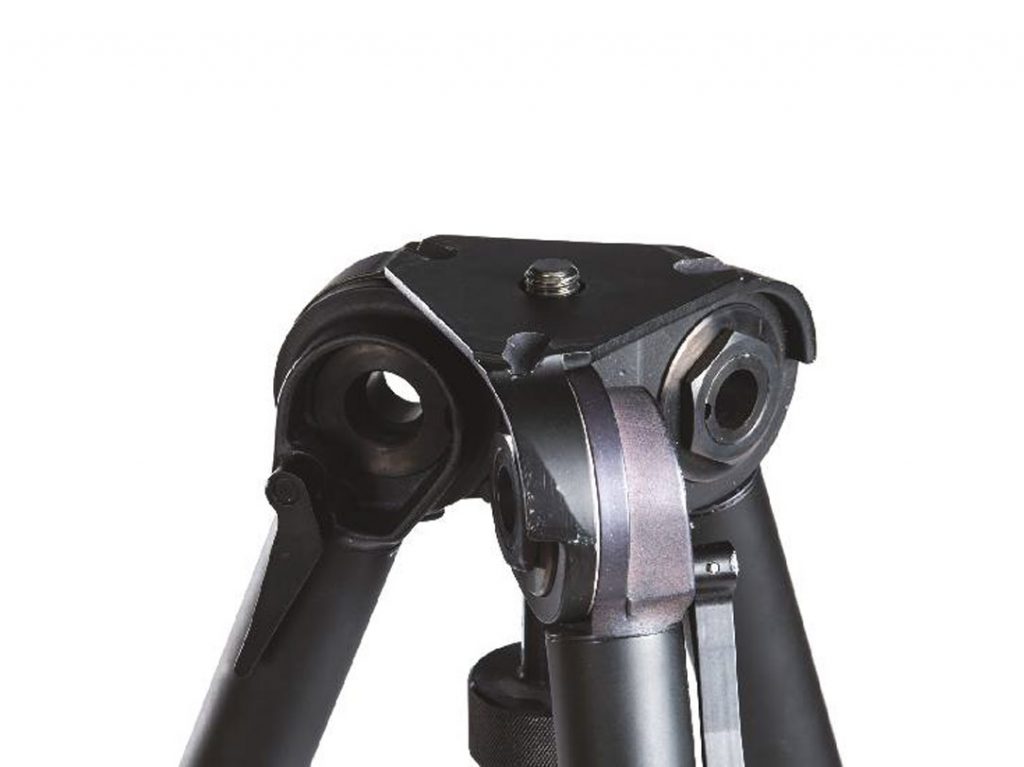

Mechanical interface 3 stud (87.2) PCD
interface in conjunction
with a 5/8″ 11 UNC
threaded drawbolt
Ground pinning Yes via accessory
Ground anchor Yes via accessory
